MAPK1 NanoBRET Kinase Assay

MAPK1 NanoBRET Target Engagement Intracellular Kinase Assay for screening of compounds binding to the target.
Target Overview

Target

MAPK1

HGNC Symbol

MAPK1

Synonyms

ERK2; ERK; ERT1; P42MAPK; PRKM1

Cell Line

HEK293 human epithelial cell line from ATCC

Assay Properties

Assay Format

384-well plate format using Promega’s NanoBRET TE Intracellular Kinase Assay

Assay Protocol

HEK293 cells transiently expressing NanoLuc- MAPK1 Fusion Vector were seeded into the wells of 384-well plates. The cells were pre-treated with the NanoBRET Tracer K-5 and then treated with reference compound CTx-0294885 for 1 hour. The BRET signal was measured on an Envision 2104 Multilabel Reader. IC50 value was calculated and IC50 curve was plotted using the GraphPad Prism 4 program based on a sigmoidal dose response equation.

Readout

Binding of compound to target kinase

Reference Compound IC50s
Compounds IC50 (M)
CTx-0294885 1.368e-006

Screening Location

Malvern, USA

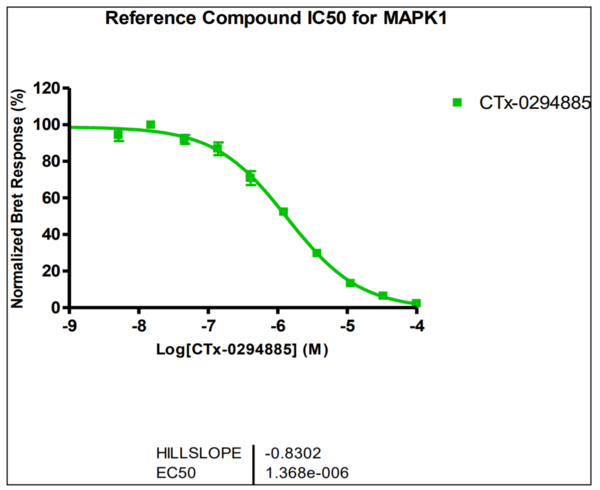

Reference compound IC50 for MAPK1
